Project details
Project Name: Foam Dart Gun
Target Customer: ToysRus (Blasters) & In-House ODM (AirZoomer)
Design involved by: Veg Tsoi & Andrew Lee & Angus Chow
Project duration: 2016/10/03 - 2018/06/27
Design goal:Renew the old version 12-inch and 6.5-inch product to the new product also with the new structure
Provide a suitable design for the kids
Business goal: Decrease the production cost and develop the OEM and ODM product
Control production the cost to match up the range of retail price
Fulfill the amount units for the annual production requirement
Target Customer: ToysRus (Blasters) & In-House ODM (AirZoomer)
Design involved by: Veg Tsoi & Andrew Lee & Angus Chow
Project duration: 2016/10/03 - 2018/06/27
Design goal:
Business goal:
6.5 inch Foam Dart Gun
Designed by Veg Tsoi | Angus Chow
Sketches & Development
Design Development:
Followed the packaging size, the cost, the structure to develop the appropriate size for the toy
Used the general data of the target kids' hands size to adjust the form and size of the handles
Printed the sketches on the cardboard to test the handle
Used orange color for the triggers, gun muzzle, and the handle for following the exporting toy safety standards
Applied the sci-fi and machine patterns detail for abounding the toys
Decided to make the extra gun muzzles for storage function instead of the old complex blast-off function
Designed the stickers for ODM and OEM version
Production Consideration:
Made the functional and appearance prototype before production
Classified the assembling parts for the molding tools by materials and colors
Controlled the production cost by using 3 sets of different molding
Adjusted the draft angles of each pattern, part, and structure for simple production
Applied the upper die and lower die for simple production
Modified and discussed the details with production teams by Testing1-Testing 3 before mass production
Designed the parting line for the sticker on the housing for decreasing the prodduction time
Features

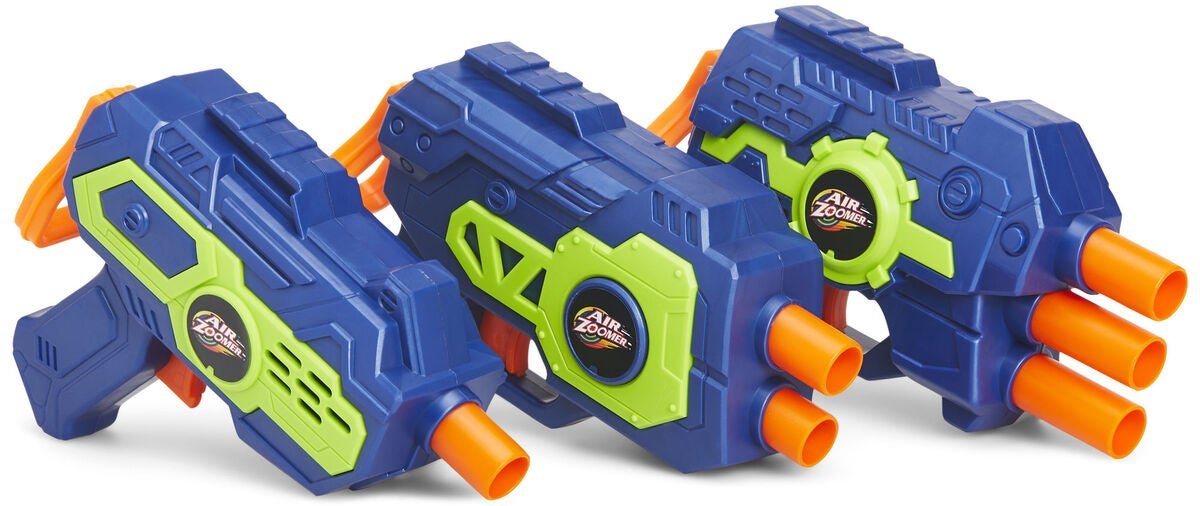

Product Name: 6.5 inch Foam Dart Gun
Target Group: 6 years+ Kids

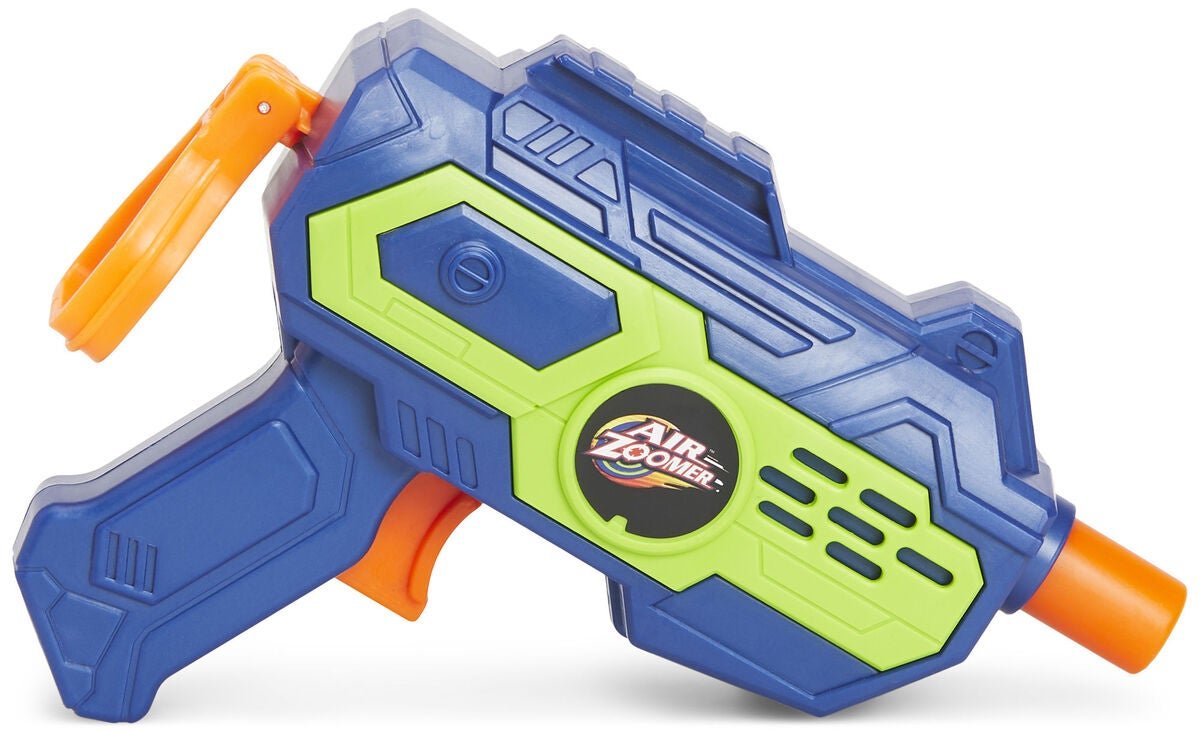

Design Function & Features:1 Head x 2

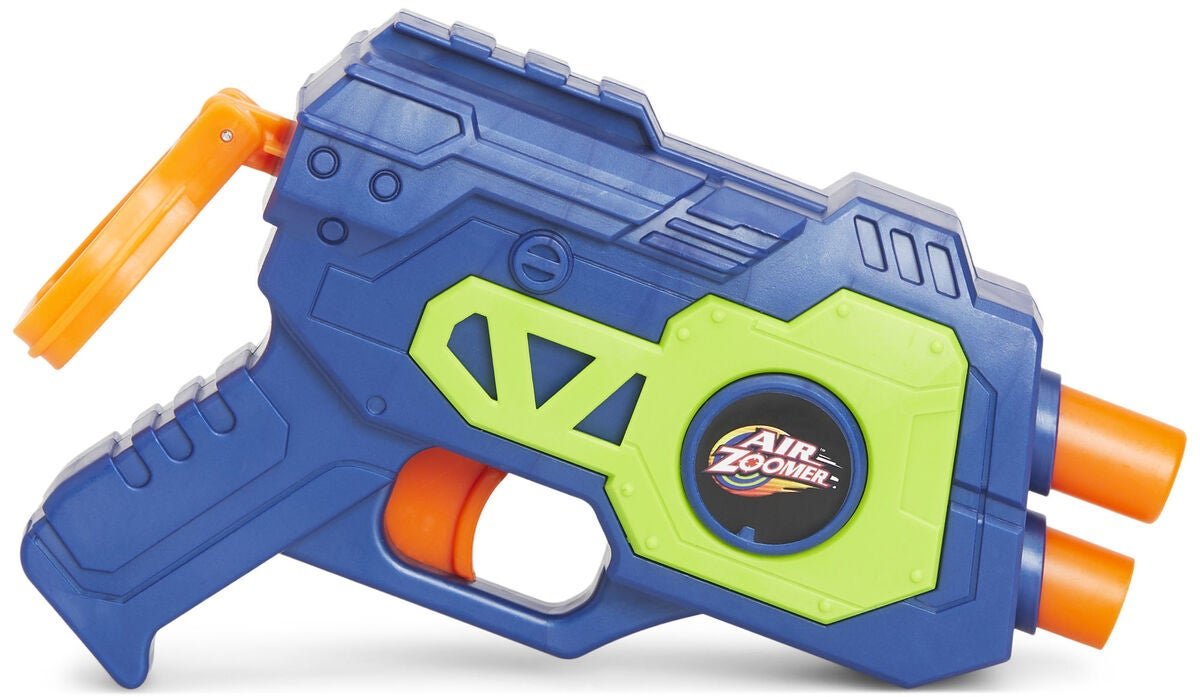

2 Heads (1 for foam darts storage) x 2
3 Heads (2 for foam darts storage) x 2
Provided 3 different points of shooting target
Target Group: 6 years+ Kids
Design Function & Features:
Research & Development In-charge: Research | Sketching | Design function | Idea genaration | CAD drawing | Design sticker
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing controlProvided the production with function instructions and BOM for the manufacturing team
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing control
CMF Details
ToysRus Version
Blasters
CMF: Orange matt HIPS for the trigger and muzzle
Blue matt HIPS for the main body case
Light blue matt HIPS for the slide handle and decoration
ToysRus Version 2
Blasters
CMF: Orange matt HIPS for the trigger and muzzle
Light blue matt HIPS for the main body case
Blue matt HIPS for the slide handle and decoration
In-House ODM Version
AirZoomer
CMF: Orange matt HIPS for the trigger and muzzle
Blue matt HIPS for the main body case
Lime matt HIPS for the slide handle and decoration
12.5 inch Foam Dart Gun
Designed by Veg Tsoi | Angus Chow | Andrew Lee
Sketches & Development
Design Development:
Added the circle with lighting and spin-around function on the body
Deleted the lighting and spin around function after cost control
Changed the trigger position to the bottom for easier to pull
Designed the shooting target for the accessories
Modified the size of the handle
Based on the structure to modify the housing on the gun muzzle area
Applied the sci-fi and machine patterns detail for abounding the toys
Decided to make the extra gun muzzles for storage function instead of the old complex blast-off function
Designed the stickers for ODM and OEM version
Production Consideration:
Made the functional and appearance prototype before production
Classified the assembling parts for the molding tools by materials and colors
Adjusted the draft angles of each pattern, part, and structure for simple production
Used the upper die and lower die for simple production
Modified and discussed the details with production teams by Testing1-Testing 3 before mass production
Designed the parting line for the sticker on the housing for decreasing the production time
Removed the product spraying color
Sealed design for the better production structure
Features
Product Name: 12.5 inch Foam Dart Gun
Target Group: 6 years+ Kids
Design Function & Features:8 Heads (7 for foam darts storage)
Pull the slide area for holding the trigger
Push the trigger to spin around the muzzle for loading the foam dart
Provided 1 shooting target
Provided 2 foldable front sight, also can be a shooting target
Target Group: 6 years+ Kids
Design Function & Features:
Research & Development In-charge: Research | Sketching | Develop the idea | CAD drawing | Design sticker | 3D print prototype
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing controlProvided the production with function instructions and BOM for the manufacturing team
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing control
Function
CMF Details
ToysRus Version
Blasters
CMF: Orange matt HIPS for the trigger and muzzle
Blue matt HIPS for the main body case
Light blue matt HIPS for the slide handle and decoration
In-House ODM Version
AirZoomer
CMF: Orange matt HIPS for the trigger and muzzle
Blue matt HIPS for the main body case
Lime matt HIPS for the slide handle and decoration
26.5 inch Foam Dart Gun
Designed by Veg Tsoi | Angus Chow | Andrew Lee
Design Development:
Developed the original design and function
Modified the details with engineer
Applied the gun machine patterns detail for abounding the toys
Designed the handle on the top for kids to carry around
Designed the stickers for ODM and OEM version
Added the functional accessories (Darts Holder, Sight Target)
Production Consideration:
Printed 3D portotype of the handle to test the size and form
Classified the assembling parts for the molding tools by materials and colors
Controlled the production cost by using 16 sets of different molding
Adjusted the draft angles of each pattern, part, and structure for simple production
Used the upper die and lower die for simple production
Modified and discussed the details with production teams by Testing1-Testing 3 before mass production
Designed the parting line for the sticker on the housing for decreasing the prodduction time
Function and Development
Features

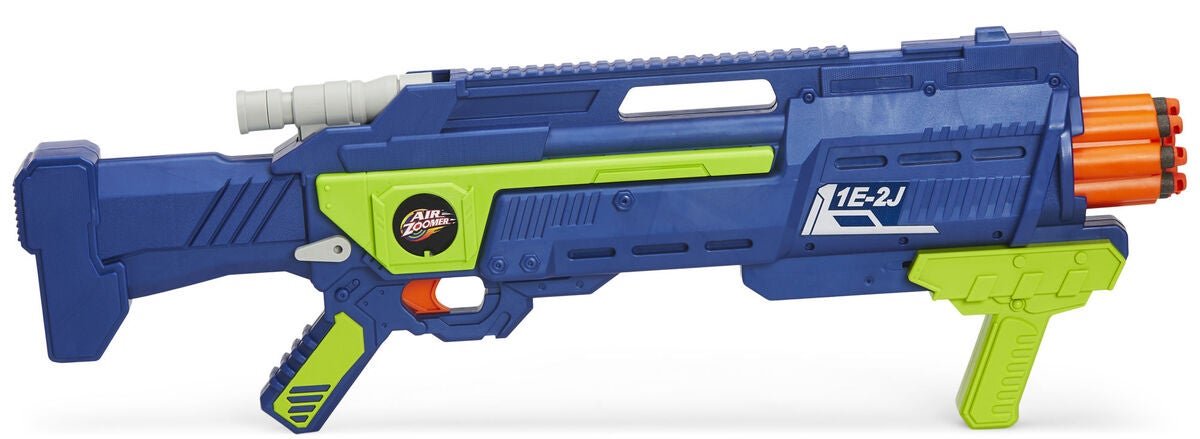

Product Name: 26 inch Foam Dart Gun
Target Group: 6 years+ Kids
Design Function & Features:8 Heads (7 for foam darts storage)
Pull the slide handle area for holding the trigger
Push the trigger to spin around the muzzle for loading the foam dart
Push the grey trigger to release the gun scope
Provided 1 with 8 foam darts storage holder
Provided 1 foldable front sight, also can be a shooting target
Target Group: 6 years+ Kids
Design Function & Features:
Research & Development In-charge: Research | Sketching | Develop the idea | CAD drawing | Design sticker | 3D print prototype
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing controlProvided the production with function instructions and BOM for the manufacturing team
Production In-charge: Testing model | Follow up on the production | Work with engineer | Molding cost | Costing control
CMF Details
ToysRus Version
Blasters
CMF: Orange matt for the trigger and muzzle
Blue matt HIPS for the main body case
Light blue matt HIPS for the slide handle and decoration
Grey matt HIPS for the gun scope and the trigger for holding scope
In-House ODM Version

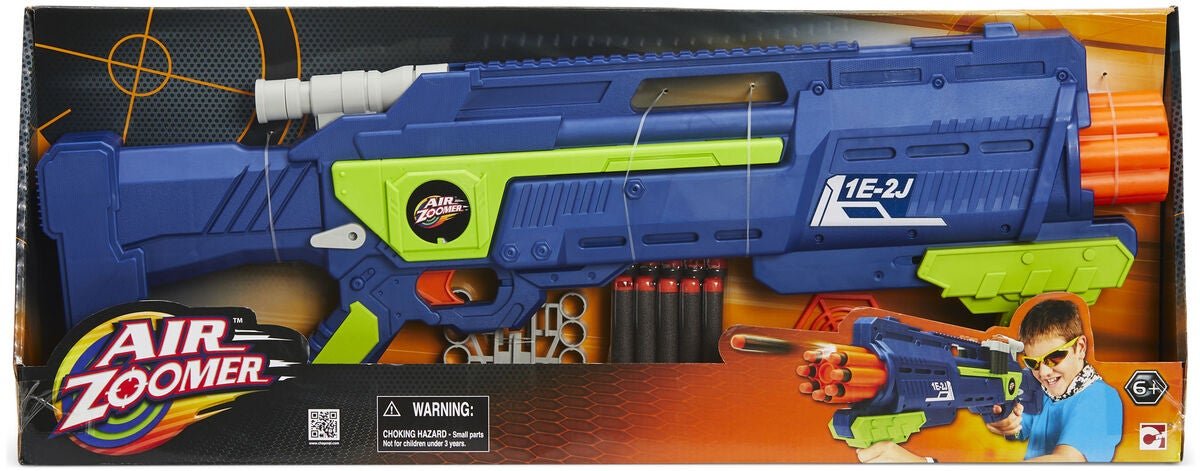

AirZoomer
CMF: Orange matt HIPS for the trigger and muzzle
Blue matt HIPS for the main body case
Lime matt HIPS for the slide handle and decoration
Grey matt HIPS for the gun scope and the trigger for holding scope
7.5 inch Foam Dart Gun & Target Set Concept
Designed by Veg Tsoi
Product Name: 7.5 inch Foam Dart Gun With Target Set
Target Group: 6 years+ Kids
Design Function & Features:3 Heads (2 for foam darts storage)
Pull the handle area for holding the trigger
Push the trigger to shoot and spin around the muzzle for loading the foam darts
Use those target parts create and build-up different modes to play
Target Set Included: 9 Targets
9 Joints
18 Ribs
Target Group: 6 years+ Kids
Design Function & Features:
Target Set Included:
Tagert Modes (Concept of the Function)
Design Concept And Development:
Created the interactive toy set for kids
Encouraged kids imagination
Used simple joint, stick, and target to combine different play set
Added the buckle, hook, and hole on the targets
Developed different function for playing scenario
Production Consideration:
Printed 3D portotype of testing the function
Reduced the plastic for decrease the production time and cost
Controlled the cost by the parts combination
Other Target Modes
